Compact copper electrowinning units for CuSO₄ solution are modular electrolytic systems that recover high-purity copper metal from copper sulfate electrolyte in a small footprint. A properly sized compact unit can recover 90–98% of the copper from a prepared CuSO₄ solution and produce cathode copper with a purity of 99.9% or higher.
What Is a Compact Copper Electrowinning Unit?
A compact copper electrowinning unit is a pre-assembled, skid-mounted or containerized electrolytic cell system. It usually includes:
- Electrolyte tank or circulation tank
- Anodes and cathodes arranged in a modular cell
- DC rectifier and busbar connections
- Circulation pump and piping
- Temperature control
- Optional ventilation and acid mist control
- Control panel with voltage and current monitoring
Unlike a conventional copper electrowinning tankhouse, which may occupy hundreds of square meters, compact copper electrowinning cells are designed for small-scale copper electrowinning, pilot plants, and decentralized copper recovery. They are often called modular copper electrowinning cells, containerized copper electrowinning plants, or skid-mounted EW units.
How Copper Electrowinning from CuSO₄ Solution Works
Copper electrowinning from CuSO₄ solution uses direct current to reduce dissolved copper ions (Cu²⁺) to metallic copper on the cathode.
Electrolyte Chemistry
The electrolyte is typically a copper sulfate–sulfuric acid solution. For efficient copper recovery from CuSO₄ solution, the feed is usually maintained at:
Cu²⁺: 30–50 g/L
H₂SO₄: 150–200 g/L
Temperature: 40–60 °C
Chloride: <20–30 ppm, depending on anode type
In waste recovery applications, copper concentration may start lower, but current efficiency drops as copper is depleted. Most compact systems recirculate the electrolyte and discharge a bleed stream when copper falls below the target level.
Anode and Cathode Reactions
At the cathode:
Cu²⁺ + 2e⁻ → Cu(s)
At an inert anode, water is oxidized:
H₂O → 1/2 O₂ + 2H⁺ + 2e⁻
The overall reaction is:
CuSO₄ + H₂O → Cu + H₂SO₄ + 1/2 O₂
This means the process regenerates sulfuric acid while plating copper, which is useful in copper sulfate waste treatment and leaching circuits.
Why Choose a Compact / Modular Copper Electrowinning System?
Small Footprint and Fast Installation
A compact copper electrowinning unit can be installed in days rather than months. A lab-scale unit may occupy less than 2 m², while a pilot-scale skid can fit in a 20–40 m² area.
Lower Capital Cost
Compared with a conventional copper electrowinning tankhouse, modular copper electrowinning cells reduce civil works, busbar installation, and assembly time. The lower upfront cost allows smaller operators to recover copper on-site instead of paying for off-site treatment or losing metal in wastewater.
High-Purity Copper Production

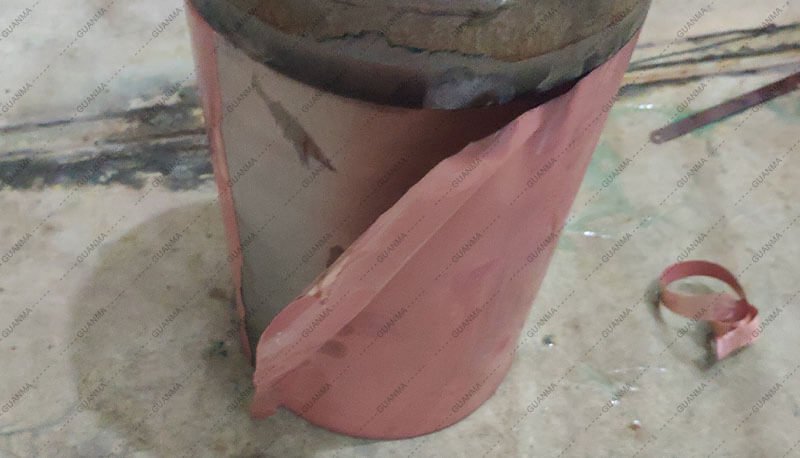

Even small-scale copper electrowinning equipment can produce smooth, dense cathode copper. With controlled current density and electrolyte chemistry, cathode purity of 99.9% Cu or higher is achievable.
Flexibility and Scalability
Because the system is modular, you can add cells or rectifier capacity as your feed volume grows. A pilot copper electrowinning plant can be expanded into a small production unit without replacing the entire system.
Easier Environmental Compliance
On-site copper recovery from CuSO₄ solution reduces hazardous waste volume and lowers copper concentrations in discharge. This supports compliance with wastewater limits and can simplify environmental permitting.
Common Applications of Compact Copper Electrowinning Units
Copper Sulfate Waste Treatment
Electroplating shops, printed circuit board manufacturers, and metal finishing plants generate copper sulfate solutions that are too valuable to discard. A compact copper electrowinning unit recovers the copper and regenerates acid, reducing waste treatment costs.
Mining and SX-EW Pilot Plants
In copper mining, solvent extraction–electrowinning (SX-EW) is used to recover copper from leach solutions. A compact electrowinning unit is ideal for pilot testing, process development, and small mining operations where a full tankhouse is not viable.
E-Waste and PCB Recycling
Copper is leached from electronic scrap using sulfuric acid or other lixiviants. Small-scale copper electrowinning equipment is increasingly used in e-waste recycling facilities to recover copper from leachate, creating a closed-loop process.
Electroplating and Surface Finishing
Rinse water and spent plating baths contain copper sulfate. Instead of conventional precipitation, an electrowinning unit for copper recovery can plate the copper and reduce sludge generation.
Laboratory and Research
Laboratory copper electrowinning cells are used for testing anode materials, additives, and current density parameters before scaling up to a pilot or production plant.
Start Recovering High-Purity Copper with Compact Electrowinning Units
Compact copper electrowinning units for CuSO₄ solution are a practical, modular way to recover high-purity copper from copper sulfate electrolyte.
Whether you are treating copper sulfate waste or recovering copper from e-waste, the right compact electrowinning unit can improve metal recovery, reduce waste, and produce a saleable copper product.
Frequently Asked Questions
What concentration of CuSO₄ is needed for a compact copper electrowinning unit?
For efficient operation, maintain a copper concentration of 30–50 g/L in the electrolyte. If you are treating a dilute copper sulfate waste stream, use a recirculating design or a pre-concentration step. Copper recovery slows below 5–10 g/L Cu.
How pure is the copper produced?
With clean CuSO₄ electrolyte and controlled conditions, compact copper electrowinning units can produce cathode copper with a purity of 99.9% Cu or higher. Impurities in the feed can reduce purity, so pre-treatment and bleed control are important.
Can a compact unit treat copper sulfate solution with impurities?
It can recover copper from many industrial CuSO₄ solutions, but impurities such as chloride, iron, and organic compounds can reduce current efficiency and cathode quality. A well-designed system includes filtration, bleed, and sometimes solution pre-treatment.
Is a compact electrowinning unit suitable for e-waste copper recovery?
Yes. After copper is leached from e-waste as CuSO₄ solution, a compact copper electrowinning unit can recover the copper as cathode. This is popular in small-scale e-waste recycling and PCB scrap processing because it avoids shipping high-copper liquid off-site.
