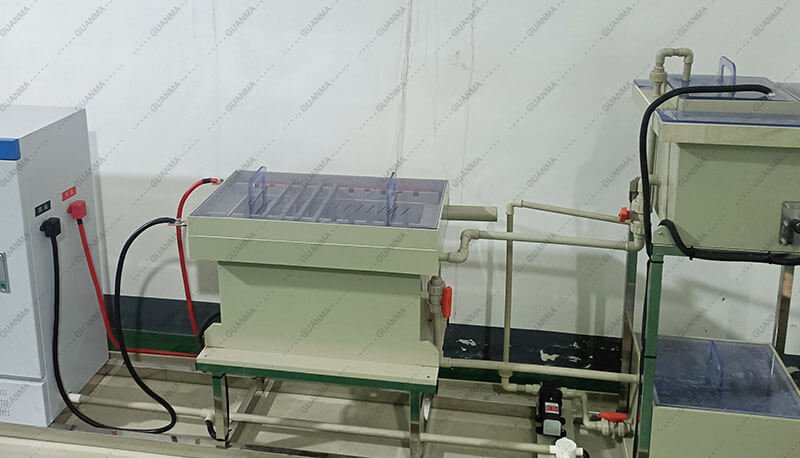

Fully automatic small copper electrolysis equipment miniaturizes the proven industrial-scale copper electrolysis process into a compact, self-regulating system that produces 99.99% pure copper cathodes around the clock — with minimal human touch.
What Is Fully Automatic Small Copper Electrolysis Equipment?
This is a turnkey copper electrolysis machine designed for low-to-medium throughput — typically from 10 kg to 500 kg of cathode copper per day. Unlike huge copper electrolysis refinery plant, this copper electrolysis equipment comes as a pre-assembled unit or a modular skid.
Copper Electrolysis Process
Every good operator should understand what happens inside the cell. The copper electrolysis process uses an acidic copper sulfate electrolyte and a direct current to transfer copper from an impure anode to a pure cathode.
Anode dissolution
Impure copper anodes (or anode baskets filled with granulated scrap) lose electrons and release Cu²⁺ ions into the electrolyte.
Ion migration
Copper ions travel toward the negatively charged cathode under the electric field.
Cathode deposition
Cu²⁺ gains electrons and plates out as dense, pure copper metal. This layer grows until the cathode is harvested.
Impurity management
Noble metals like gold, silver, and platinum fall as anode slime, while base metals stay dissolved or are controlled through electrolyte bleeding and purification.
With the copper electrolysis diagram provided alongside every machine, your team can pinpoint exactly where voltage drops occur, how electrolyte flows, and where slime collects.
Why a Fully Automatic Small Copper Electrolysis Machine Outperforms Manual Setups
A standard copper electrolysis machine still often relies on an operator to adjust current, check temperature, and decide when to harvest. Our fully automatic small copper electrolysis equipment eliminates these variables:
Auto-Current-Adjustment
Sensors measure cathode surface area growth in real time, fine-tuning amperage to stay inside the ideal 250–350 A/m² window.
Closed-Loop Temperature Control
Electrolyte is kept at 60–65 °C with ±0.5 °C accuracy. Hot spots or cold zones that ruin cathode smoothness become a thing of the past.
Smart Harvesting Alerts
The HMI tells you exactly when each cathode reaches the programmed weight. No more premature pulling or wasted copper.
Self-Cleaning Slime Traps
Some models feature automatic anode slime scraping, keeping the cell floor clear and reducing maintenance shutdowns.
Scaling Up: From a Single Machine to a Complete Copper Electrolysis Plant
Copper electrolysis equipment is inherently modular. You can start with a single-cell copper electrolysis machine producing 50 kg/day, and when demand rises, add identical cells in parallel. The shared rectifier, electrolyte tank, and PLC scale gracefully into a full copper electrolysis plant without ripping out your initial investment.
Who Benefits Most from a Small Copper Electrolysis Machine?
Scrap recyclers upgrading mixed copper scrap into premium cathode for direct sale or further rod production. A small copper electrolysis machine removes the middleman refinery.
E-waste processors extracting high-value copper while capturing precious metal slime for separate refining.
Wire and cable manufacturers producing their own oxygen-free rod by integrating an upstream melting furnace with this copper electrolysis equipment.
Mints and precious metal refiners who need a clean copper source for alloying — and want to recover Au/Ag from copper-based scrap.
Mining R&D centers and universities operating a pilot copper electrolysis plant for process development and student training.
Small mine owners turning cement copper or crude precipitates into saleable cathode on site.
Ready to Launch Your Copper Electrolysis Operation?
Ready to see how much you can save and earn? Contact Guanma Machinery for a customized layout, a tailored return-on-investment calculation, and a real-time demo of the copper electrolysis machine that fits your throughput goals.
