A photovoltaic silver recovery plant for solar panel waste is a specialized recycling system designed to extract silver from end-of-life photovoltaic modules. With silver accounting for up to 10–20% of a solar panel’s material value.
Whether you are a solar farm operator, e-waste recycler, or metal refining company, investing in a dedicated PV silver recovery line allows you to process dead modules, broken cells, and production scrap efficiently.
How a Photovoltaic Silver Recovery Plant Works
Modern silver recovery lines for solar panel waste typically combine mechanical pre-treatment, thermal decomposition, and hydrometallurgical or electrochemical refining.

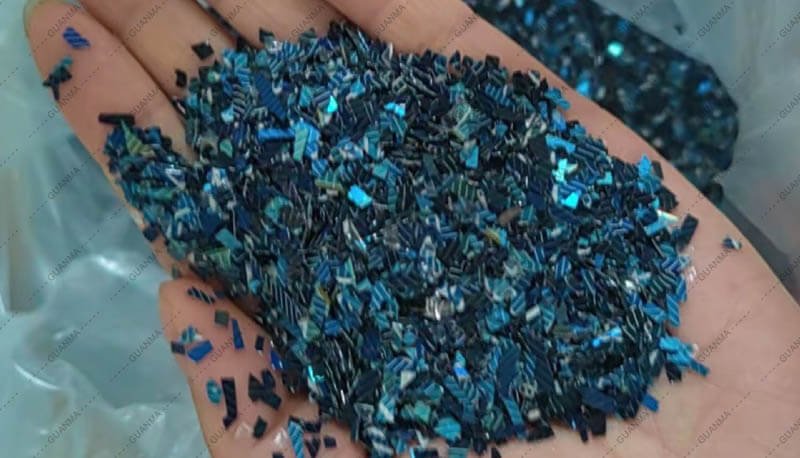

Step 1: Automated Disassembly and Size Reduction
The first step separates the aluminum frame, junction box, and cables from the glass and laminated cell layers. Specialized PV module delaminators and shredders break down the panel without losing fine silver particles
Step 2: Thermal Treatment to Remove EVA and Backsheet
Controlled pyrolysis separation removes the EVA encapsulant and backsheet polymer. This step is critical because organic layers would otherwise interfere with silver leaching and reduce purity.
Step 3: Silver Leaching and Purification

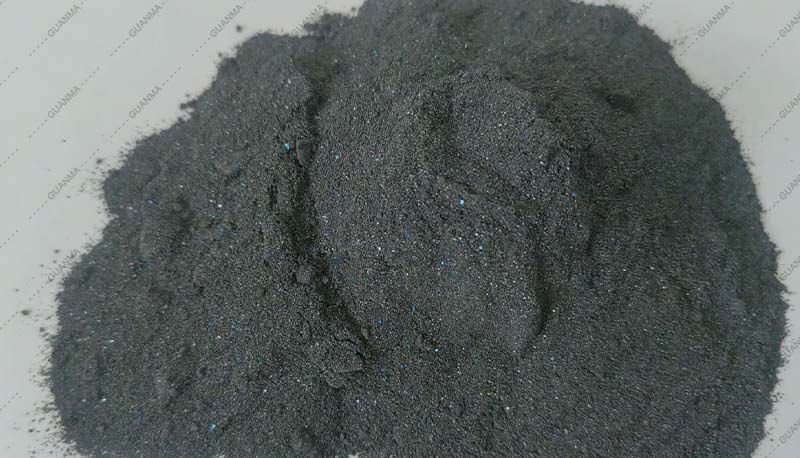

The remaining silicon, glass, and metal powder are treated with non-cyanide leaching agents or mild nitric acid solutions. Silver dissolves selectively while silicon and glass remain inert. The silver-rich solution then undergoes:
Precipitation
Electrolytic refining
Ion exchange or cementation
Result: silver powder or silver ingots with 99.9% purity, ready for resale to refineries, electronics manufacturers, or bullion markets.

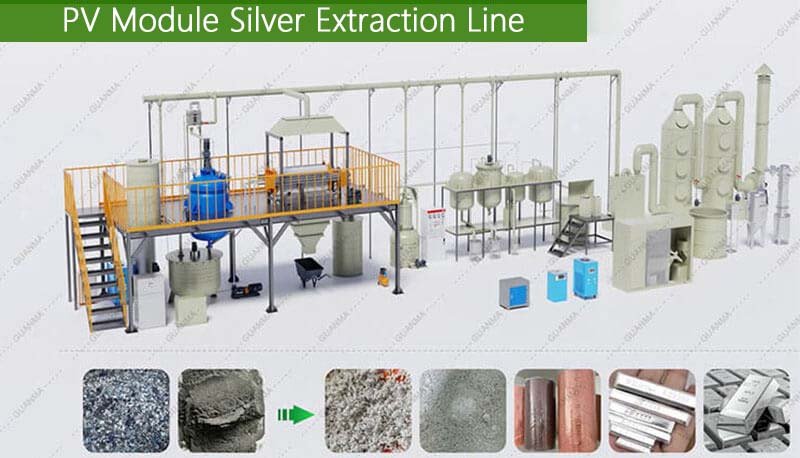

Key Equipment in a Solar Panel Silver Recovery Plant
To build or upgrade a complete photovoltaic silver recovery line, you need more than a single machine. Below are the core modules that high-performing plants include.
PV Module Dismantling and Frame Removal Machine
Automatically removes aluminum frames and junction boxes in under 60 seconds per panel. Reduces manual labor and protects downstream equipment from contamination.

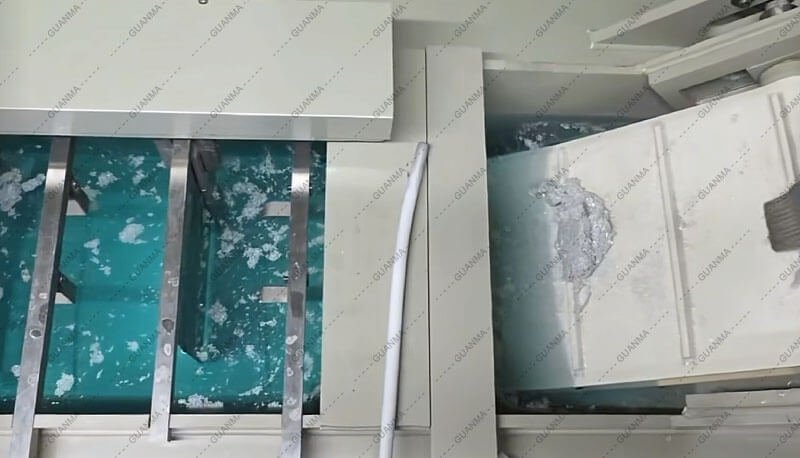

Glass Separation System
Recovers clean tempered glass for resale to glass manufacturers. Clean glass separation also improves silver concentration in the remaining fraction.
Silver Paste Stripping and Leaching Reactors
Corrosion-resistant reactors with precise temperature and pH control. Designed for batch or continuous silver leaching from solar cell powder.
Electrolytic Silver Refining Unit
Produces high-purity silver cathodes from leach solutions. Built-in rectifiers and circulation pumps ensure stable deposition and minimal metal loss.
Wastewater Treatment and Acid Recycling Module
Recovers process water and recycles nitric acid. Helps meet strict environmental regulations and lowers operating expenses.
Who Needs a Photovoltaic Silver Recovery Plant?
Solar Panel Manufacturers
Production inevitably generates off-spec cells, broken wafers, and silver paste waste. An in-house recovery line turns internal scrap into a revenue stream.
E-Waste and Metal Recycling Companies
If you already recycle electronics, adding a PV module silver extraction line gives you early-mover advantage in the fast-growing solar waste market.
Solar Farm Decommissioning Contractors
Large-scale repowering projects generate thousands of end-of-life modules. On-site or centralized silver recovery significantly increases project profitability.
Precious Metal Refineries
Refineries seeking consistent silver-bearing feedstock can integrate PV module processing to diversify beyond traditional mining concentrates and jewelry scrap.
Choosing the Right Photovoltaic Silver Recovery Plant Supplier
Not all recovery systems are equal. When comparing suppliers, evaluate these critical factors:
- Silver recovery rate – demand documented proof from pilot tests
- Automation level – semi-automatic vs. fully automated feeding and sorting
- Chemical consumption – low-acid or acid-regeneration systems reduce OPEX
- Throughput capacity – panels per hour or tons per day
- Modular scalability – can you add capacity as solar waste volumes grow?
- Compliance with EU WEEE and US EPA standards – critical for export-oriented recyclers
Look for manufacturers that provide installation, operator training, and after-sales technical support. Photovoltaic silver recovery plant should include process flow design, utility requirements, and environmental permits guidance.
Start Your Photovoltaic Silver Recovery Project Today
Contact guanma machinery team today to discuss your feedstock, capacity targets, and site requirements. We will help you design a complete solar panel silver extraction and refining solution tailored to your market.
Frequently Asked Questions About PV Silver Recovery
Is silver recovery from solar panels profitable?
Yes. With silver prices stable and waste volumes rising, a well-designed photovoltaic silver recovery plant can achieve payback in 18–36 months, depending on throughput and local silver prices.
What is the purity of recovered silver?
Standard systems produce 99% pure silver powder. Electrolytic refining modules can reach 99.99% purity, suitable for industrial and investment applications.
Can I process mixed solar panel waste?
Yes. Modern plants handle crystalline silicon, thin-film, and broken cell waste. Pre-sorting by panel type improves efficiency but is not always required.
Do you offer custom configurations?
Most reputable suppliers offer custom photovoltaic silver recovery plant designs based on your input material, desired capacity, available utilities, and local environmental regulations.
