If you are currently searching for a reliable silver electrolytic refining machine for sale, you already know the real-world challenges: inconsistent purity levels, high chemical costs, excessive labor, and safety risks.
Whether you are upgrading a jewelry workshop, scaling an e-waste recycling plant, or running a mining doré treatment facility, the right electrolytic silver refining equipment is the backbone of profitable, safe, and high-quality silver production.
What Is a Silver Electrolytic Refining Machine?
A silver electrolytic refining machine (often called an electrolytic silver cell system) is a complete production unit that separates pure silver from impurities using an electrochemical process.
A standard system consists of:
Electrolytic cells made from chemical-resistant PP, FRP, or PVC
Precise DC power supply with ripple control
Cast silver anode plates (produced from input scrap, silver grain, or doré)
Cathode plates or starter sheets, often titanium or stainless steel
Electrolyte circulation and temperature management system
Silver crystal harvesting mechanism (manual, semi-automatic, or fully automatic scraper units)
Fume extraction and electrolyte filtration loops
Intelligent Automation with PLC Control
Key Features of Our Silver Electrolytic Refining Machines for Sale
When investing in a professional silver refining machine, it’s important to look beyond the price tag.
1. High-Precision Cell Construction
All tanks are manufactured from high-grade polypropylene (PP) with welded seams and reinforced ribs. They are resistant to nitric acid and silver nitrate at operating temperatures.
2. Intelligent Automation with PLC Control
Every automatic silver electrolytic refinery we supply includes a programmable logic controller with a color HMI. Operators can set target voltage, monitor current density, and receive warnings for short circuits, over-temperature, or circulation failure.
3. Efficient Silver Crystal Harvesting
Our machines offer two options: a semi-automatic pneumatic scraper system or a fully automated chain-driven scraper that continuously harvests silver crystals into a collection basket or hopper.
4. Electrolyte Management
Each silver electrolysis equipment package includes a heated circulation tank, magnetic drive or mechanical seal pump, and multi-stage filtration. The electrolyte is constantly purified, and dissolved copper concentration is managed to extend electrolyte life.
5. Energy-Saving DC Power Supply
We use high-frequency switching rectifiers with ripple below 5%. They maintain precise current density, reduce energy loss, and protect the quality of silver deposits.
6. Integrated Safety Features
Standard safety package: fume extraction duct connections, leak detection sensors, emergency stop, electrolyte level monitoring, and temperature alarm.
Applications of Electrolytic Silver Refining
A silver electrolysis machine serves a wide range of industries and metal recovery scenarios:
Jewelry and Goldsmithing Scrap
Transform mixed-karat scrap, sweeps, and floor dust into 99.99% fine silver for resale or casting.
E-Waste and PCB Recycling
After copper smelting or leaching, silver residues can be cast into anodes and electrowon, boosting profits from electronic scrap.
Mining Doré Bars
Refineries processing gold-silver doré use electrolysis to separate silver from gold accurately. The anode slime retains gold and PGMs, creating a second revenue stream.
Photographic and X-Ray Film Recovery
Silver extracted from fixing solutions or burnt film ash is upgraded through electrolysis to saleable bullion.
Silver Bullion and Granule Manufacturing
Direct production of high-purity silver crystals that can be washed, dried, melted into bars, or sold as electro-refined silver powder.
Coin and Medallion Mints
Achieve the exacting purity needed for investment-grade products.
Why Buy Your Silver Electrolytic Refining Machine from Guanma Machinery?
We understand that a silver electrolytic refining machine for sale is a capital decision that affects your entire production line. That’s why we do more than just manufacture equipment:
In-house engineering and quality control
We design cell bodies, rectifiers, and control panels ourselves, ensuring compatibility and long service life.
Global delivery and installation
Our machines are shipped to refineries across 30+ countries, with optional on-site assembly and commissioning.
Performance guarantee
Every machine leaves our factory after a 72-hour continuous test run. We stand behind the purity and throughput numbers we promise.
Get Your High-Performance Refining Machine

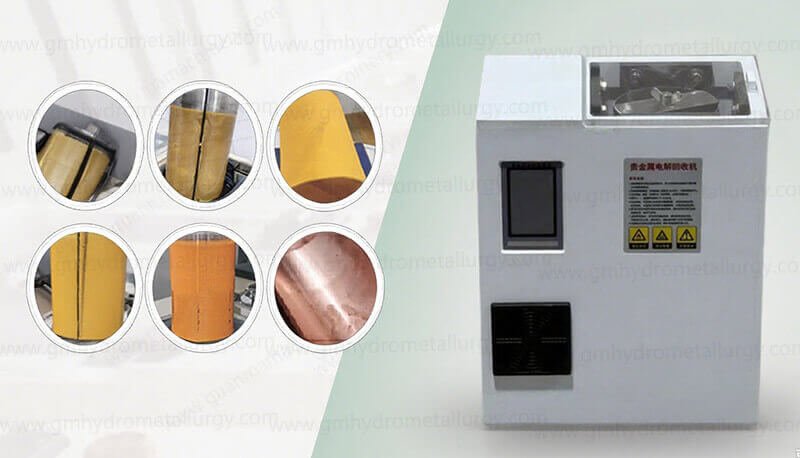

Guanma Machinery have a silver electrolytic refining machine for sale that perfectly matches your capacity, space, and budget. Whether you need a single compact small-scale silver electrolysis machine or a fully integrated industrial silver refining system, we have the solution.
Frequently Asked Questions – Silver Electrolytic Refining Machine
Q: What purity can an electrolytic silver refining machine achieve?
A: With proper electrolyte maintenance and operation, a consistent 99.99% purity is standard. Some installations produce 99.995% purity silver for demanding applications.
Q: How does the machine deal with copper build-up?
A: Copper dissolves from the anode and accumulates in the electrolyte. Once it reaches a threshold, a portion of electrolyte is bled off and treated via cementation or ion exchange. We supply matching electrolyte purification modules that automate this process.
Q: Is the silver electrolytic refining system difficult to operate?
A: Not at all. Our PLC-controlled silver electrolytic refining machines are designed to be operated by staff with minimal chemical engineering background. Training is included, and the interface uses intuitive graphics. Daily tasks include checking anode consumption, collecting silver crystals, and monitoring the display.
