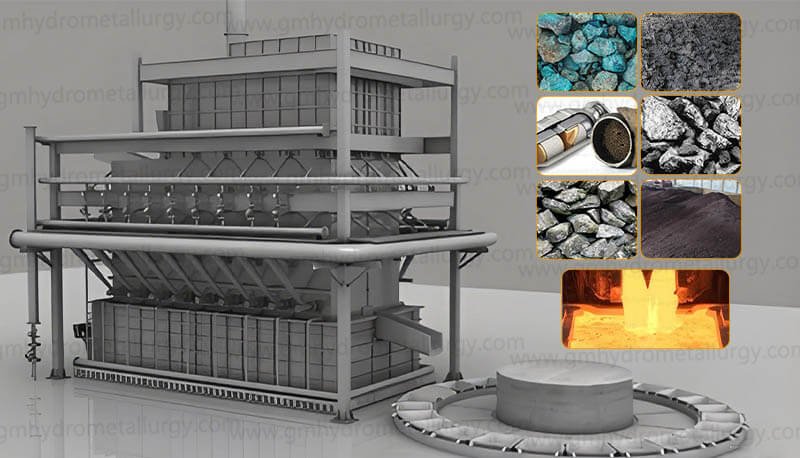

The oxygen-enriched side-blowing furnace includes waste heat boiler, surface cooler, bag dust collector, waste heat power generation, desulfurization and other systems.
The basic task of the oxygen-enriched side-blowing furnace reduction smelting is to reduce the liquid high-lead slag produced by the bottom-blowing furnace to produce crude lead, zinc-containing slag, and sulfur-containing flue gas. The zinc-containing slag enters the fuming furnace for further blowing, and the sulfur-containing flue gas enters the desulfurization system after dust collection.

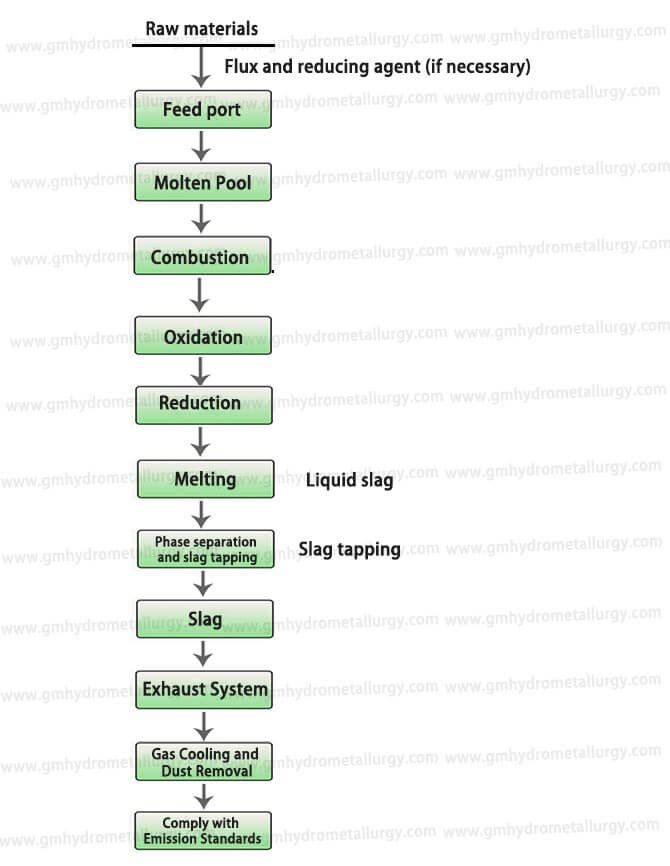

Oxygen Enriched Side-Blown Furnace Process Flow
Guanma Machinery Oxygen Enriched Side-Blown Furnace operates as a highly efficient submerged bath smelter:
Feed Preparation & Charging
Feedstock (concentrates, secondary materials) is blended with fluxes (SiO₂, CaO, Fe) and reductant (if needed).
Prepared mix is continuously fed into the furnace via feed ports (roof/side).
Intense Smelting & Reaction Zone
High-purity oxygen is injected horizontally through side tuyeres directly into the molten bath beneath the slag layer.
Intense Reactions Occur
Combustion: Generates intense heat (1200-1300°C).
Oxidation: Sulphides oxidize (e.g., 2FeS₂ + 5.5O₂ → Fe₂O₃ + 4SO₂ + Heat).
Reduction: Oxides are reduced to metal (e.g., PbO + CO → Pb + CO₂).
Fluxing: Impurities form a liquid slag (FeO-SiO₂-CaO dominant).
Phase Separation & Tapping
Dense molten metal (matte, bullion, alloy) settles to the furnace bottom.
Less dense slag floats above the metal phase.
Metal phase is tapped intermittently/continuously from the lower tap-hole.
Slag is tapped separately from a higher elevation. Slag composition is controlled for disposal or valorization.
Off-Gas System – Critical for Emissions Control
High-temperature, SO₂-rich flue gas exits the furnace.
Waste Heat Recovery: Gas passes through a boiler generating steam/power.
Gas Cooling & Dedusting: Cooled gas undergoes multi-stage cleaning (Cyclones → ESP or Baghouse).
Sulfur Capture: Cleaned, high-strength SO₂ gas feeds a sulfuric acid plant.
Final Emission Control: Treated gas meets global emission standards before release.
Raw Material & Output

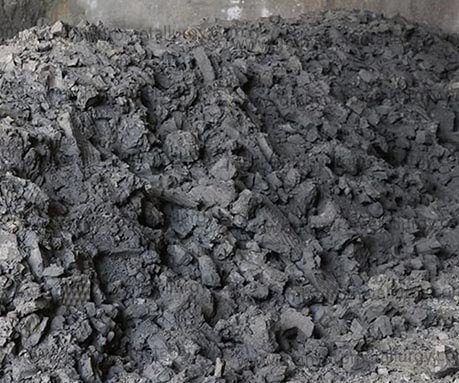

Lead Concentrate

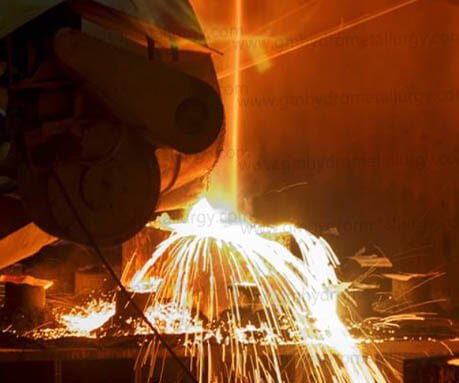

Crude Tin

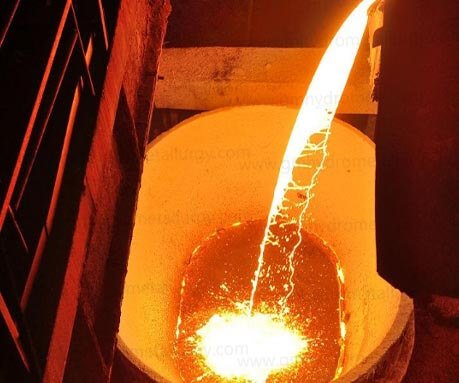

Crude Lead

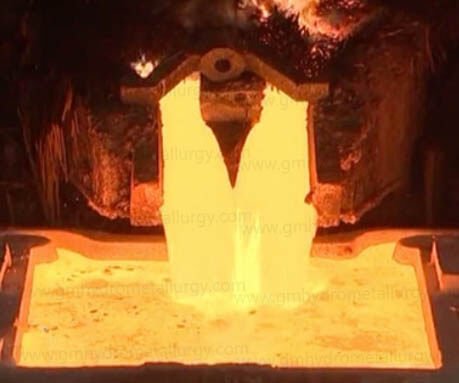

Crude Copper

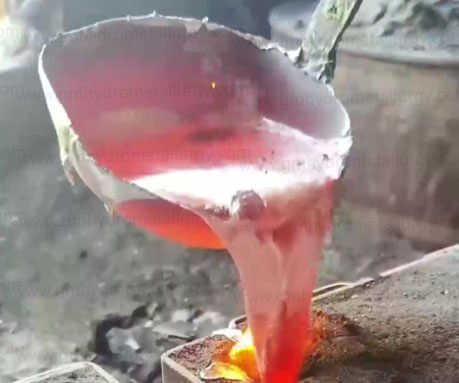

Crude Antimony

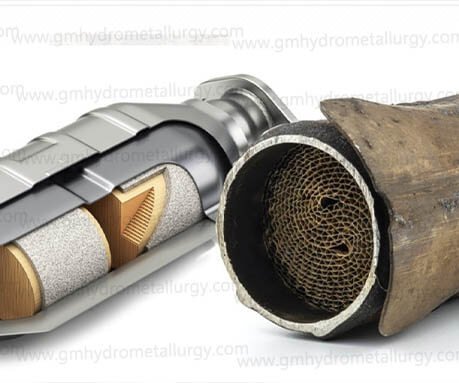

Raw Materials: Copper concentrate, Blister copper, Lead concentrate, Spent lead-acid battery paste & grids, Crude lead ingots, Nickel sulfide concentrate, Cassiterite (tin ore) concentrate, E-waste, Spent catalysts (containing Cu, Al, Pb, Zn, Sb, Sn, etc.)
Final Products (Minimum Purity ≥95%): Crude copper, Crude aluminum, Crude lead, Crude zinc, Crude antimony, Crude tin.
Equipment Advantages
Why Choose Guanma's Oxygen Enriched Side-Blown Furnace?
Highest Metal Recovery (>98%)
Maximize yield and profitability from valuable primary and secondary resources.
Dramatically Lower Operating Costs
Reduced energy consumption (fuel + power) and lower reagent costs due to high thermal efficiency.
Environmental Performance
Ultra-Low Emissions: >99.5% SO₂ capture, minimized NOx/CO/dust, negligible dioxins/furans.
Stable, Non-Hazardous Slags: Compliant with strict disposal regulations globally.
Unparalleled Feedstock Versatility
Process virtually any metal-bearing concentrate or complex secondary/residual material efficiently.
Superior By-Product Value
Generate high-value slags (e.g., high-Zn for Zn recovery) or mattes (PGM enrichment).
Process Robustness & High Availability
Simple operation, robust refractory design, and easy tuyere maintenance ensure maximum uptime.
Fuel & Oxygen Flexibility
Adapt to local fuel economics and optimize oxygen usage for cost and performance.
Proven Technology & Guanma Innovation
Based on robust bath smelting principles, enhanced with Guanma Machinery proprietary tuyere cooling, refractory lining, and process control systems for peak performance and longevity.
Scalability & Modularity
Furnace design tailored precisely to your capacity needs, from small recyclers to large primary smelters.
Full Lifecycle Support
Guanma Machinery provides end-to-end partnership: feasibility studies, process engineering, detailed design, supply, installation supervision, commissioning, operator training, spare parts, and ongoing technical service.
Technical Parameter
Oxygen Enriched Side-Blown Furnace Technical Parameters
If you have other requrement and want to know more details, please contact us +86 17838366846.(The data in this table are for reference only)
| Capacity | 300 ton/day | 500 ton/day | 1000 ton/day |
| Raw Materials | Non-ferrous metal feedstocks containing lead (Pb), zinc (Zn), copper (Cu), antimony (Sb), tin (Sn), etc. | ||
| Size | 3.5 m³ | 5.5 m³ | 11 m³ |
| Power | Custom-designed based on material properties | ||
| Product Purity | ≥95% | ||
| Recovery Rate | ≥99% | ||
| Heating Methods | 60-200m³/h,Two Burners/Furnace | ||
| Smelting Temperature | 10-30 t/h | ||
| Smelting Duration | 5-20m³/h | ||
